120 GHz Harmonic Load Pull

This system adopts the advanced DELTA series tuners from Focus Microwaves. It optimizes the performance of radio frequency and microwave devices through precise harmonic measurement and impedance tuning, which is critical for 5G, satellite communications, and other cutting-edge applications.

120 GHz harmonic load-pull technology represents a major breakthrough in the field of high-frequency device optimization. This technology enables engineers to accurately measure and adjust the harmonic components (second harmonic 2F0 and third harmonic 3F0) of signals generated by the device under test (DUT).

Key Features:

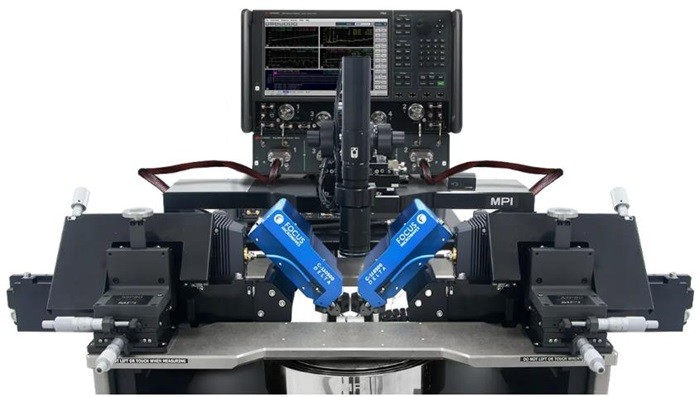

High-Frequency Tuning: The DELTA series tuners from Focus Microwaves operate at frequencies up to 120 GHz, enabling full control of impedance and phase for precise tuning.

Direct Probe Connection: This series of tuners supports direct connection between RF probes and the device under test, effectively reducing insertion loss and ensuring accurate measurement of harmonic signals.

Industry-Leading Performance: Co-developed with Keysight Technologies, the 120 GHz DELTA tuner enables third harmonic (3F0) tuning at the fundamental frequency in the FR2 band (24 to 39 gigahertz), setting a new benchmark for high-frequency device characterization.
