ESD TEST — ATS-8000A

Product Summary

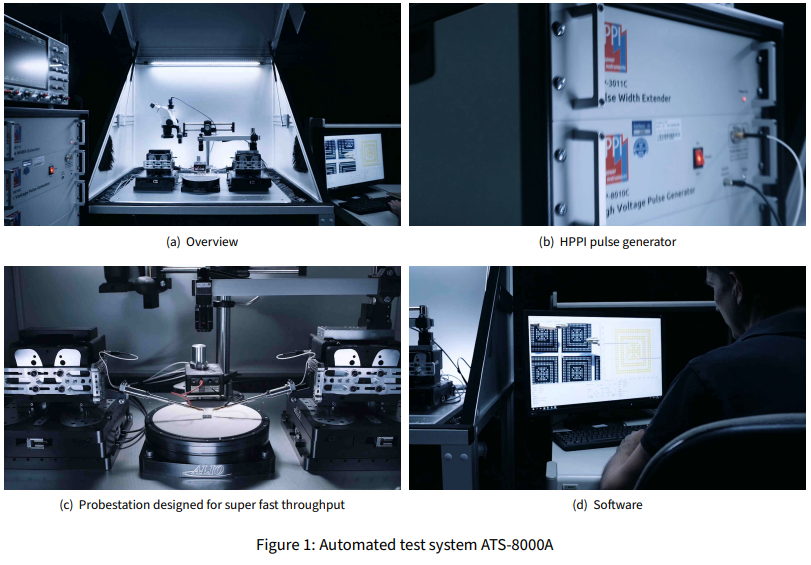

The ATS-8000A test system is a fully automated, dynamic flexible pitch 2-pin or fixed pitch Kelvin-type probing solution for HBM, TLP, VF-TLP, HMM and CC-TLP on package- and wafer-level. Future extension for CDM is optional.

Basic Information

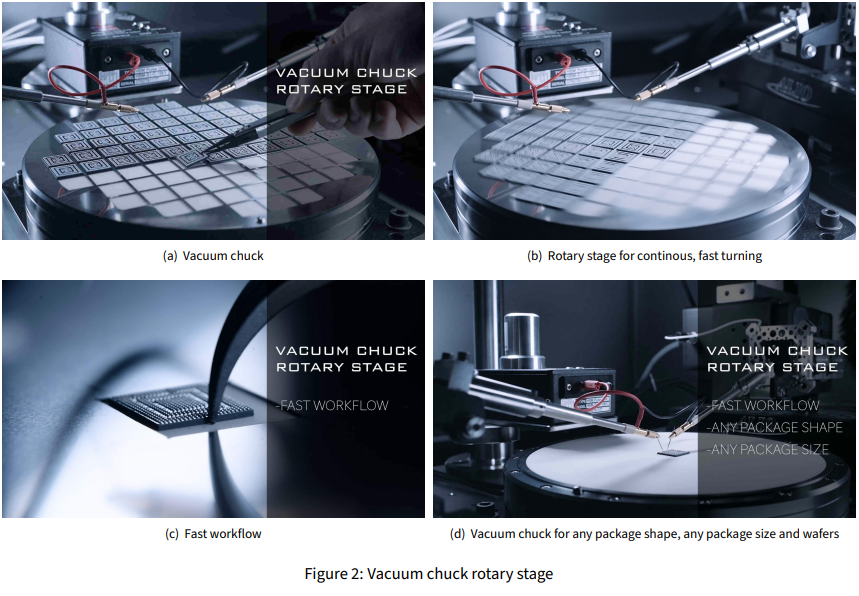

1.Vacuum Chuck Rotary Stage

The vacuum rotary stage can be configured for any package shape, any package size and wafers.

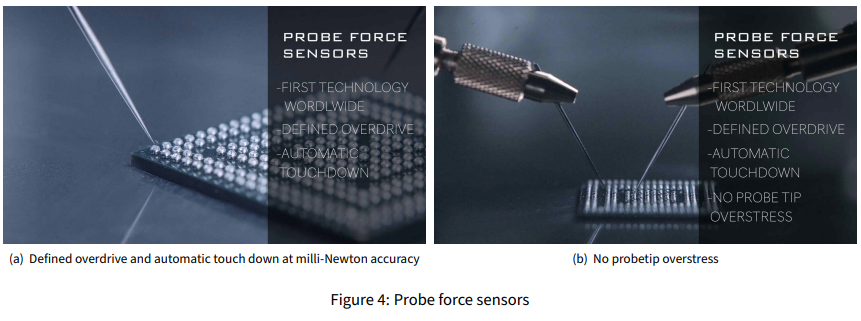

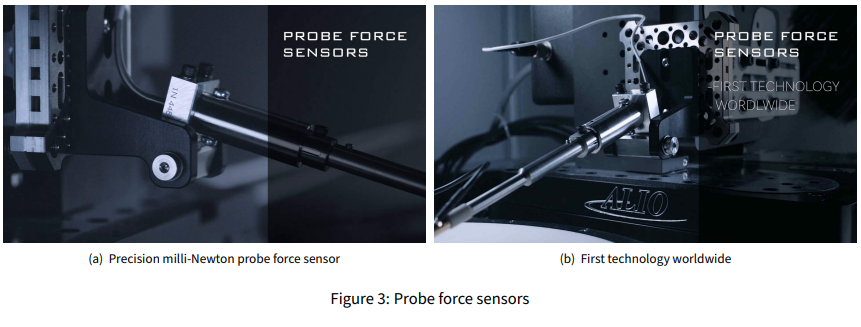

2. Probe Force Sensors

The probe force sensors ensures maximum probe tip life time and avoid job interruption.



Probe Force Sensors: Defined Overdrive, Automatic Touch Down, No Probetip Overstress.

Technical Advantage

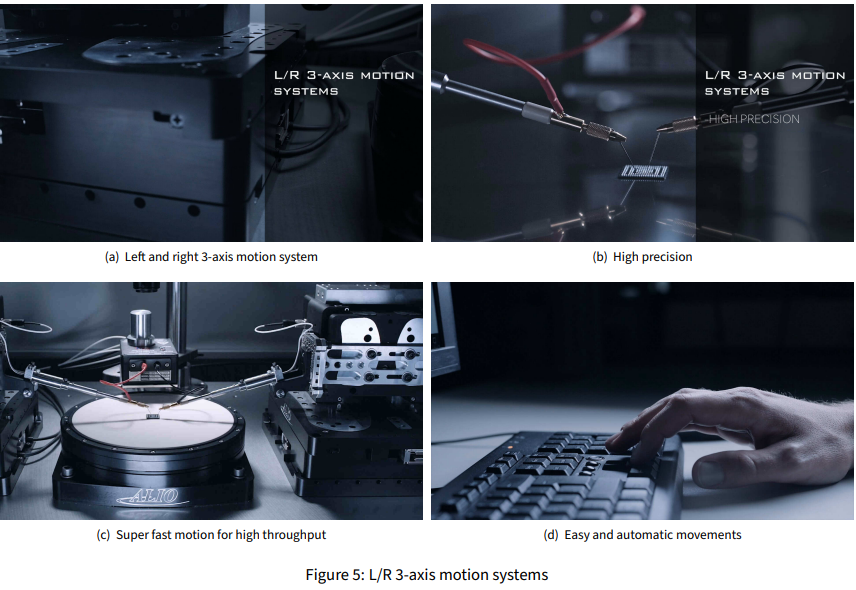

1.L/R 3-Axis Motion Systems

The 3-axis motion systems and rotary stage are designed for ultra-fast speed to maximize throughput.

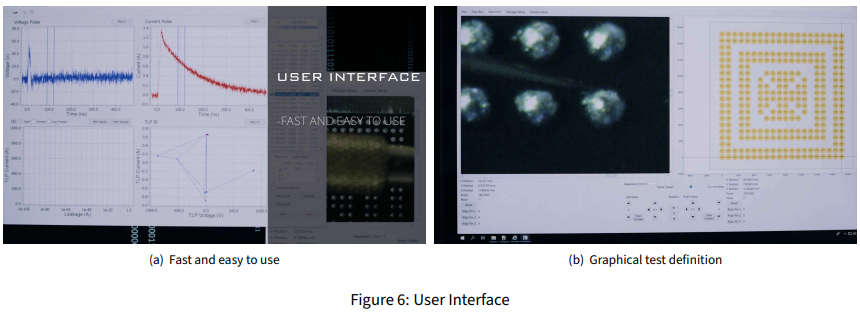

2.User Interface

The user interface and data management is based on HPPI standard software.

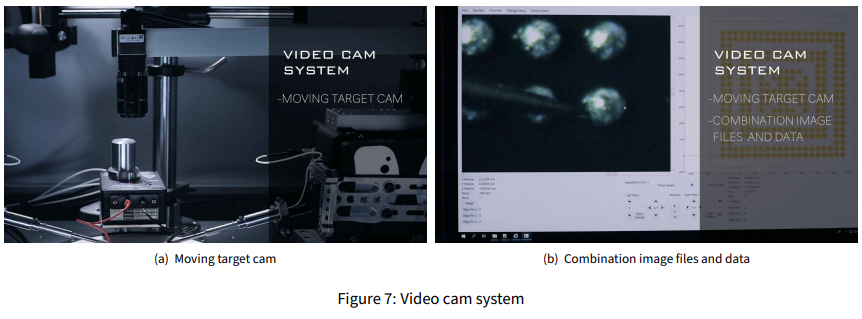

3.Video Cam System

4.Easy to use, rugged high quality components, high throughput.

Application

It is mainly applied to HPPI automatic (VF)TLP/HBM/HMM/CC-TLP solution.
