Hanwa HED-C5000R
Product Summary
This device is a highly reliable device that meets Japanese and international standards (JEITA/ESDA/JEDEC specifications). It can support Japanese and international test specifications by exchanging discharge circuit components. It can measure the charging and discharging capacity of each terminal of the device, and the test data can be saved as text files.
Basic Information

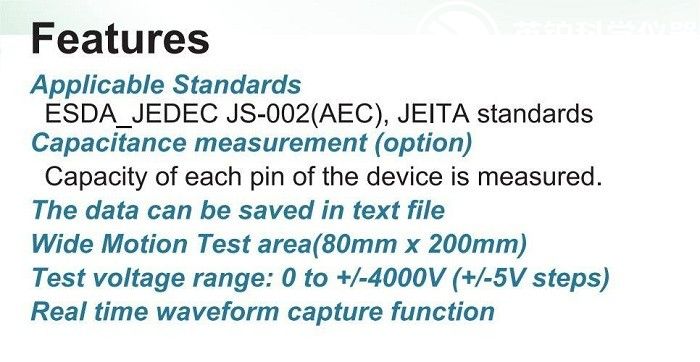

Technical Advantage
1. Meet JS-002, JEDEC, ESDA, AEC and other global CDM model test specifications
2. test voltage up to 4KV, for the same type of machine the highest
3. The supplier is a member of the JS-002 specification development committee with reliable technology
4. The use of hardware and software is simple and easy to use. It is the recommended model of the world's Leading semiconductor companies
5. The only CDM test machine with D-AEC charging and discharging function
Application
ESD (Electrostatic Discharge) test
Hanwa HED-C5000R
Hanwa HED-C5000R
Hanwa HED-C5000R
Hanwa HED-C5000R
