Hanwa HCE-5000

Product Summary

ESD(Electrostatic discharge) testing is performed during semiconductor reliability testing. ESD testing is essential for quality assurance both in the development of semiconductor designs and in the final production process of semiconductor manufacturing.

Basic Information

• Independent test system, small portable space occupation, high cost performance.

• With embedded operation screen, HBM, MM and leakage test can be completed independently without external PC or Curve tracer

• Suitable for power semiconductor devices and small pin IC

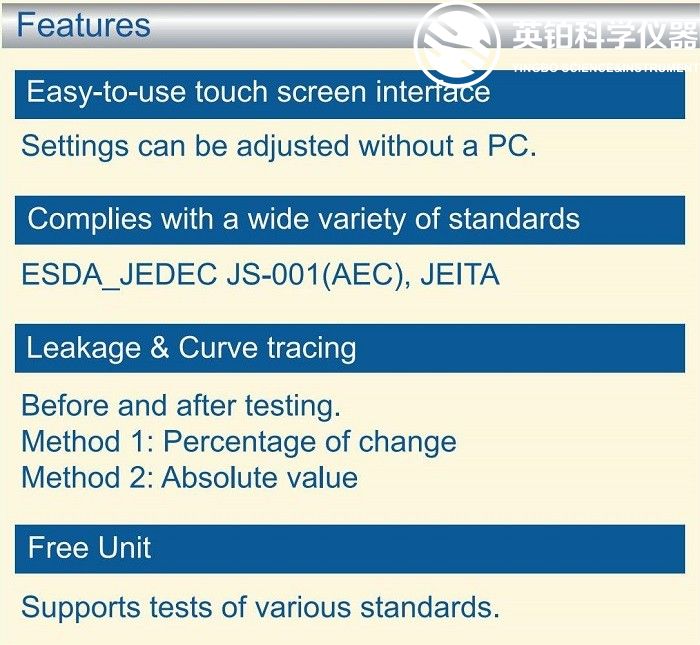

Technical Advantage

• Easy-to-use touch screen interface, Settings can be adjusted without a PC

• Comply with various standards and meet JEDEC/ESDA/AEC/JEITA HBM/MM requirements

• Leakage and curve tracing

Application

ESD electrostatic discharge test.

Hanwa HCE-5000

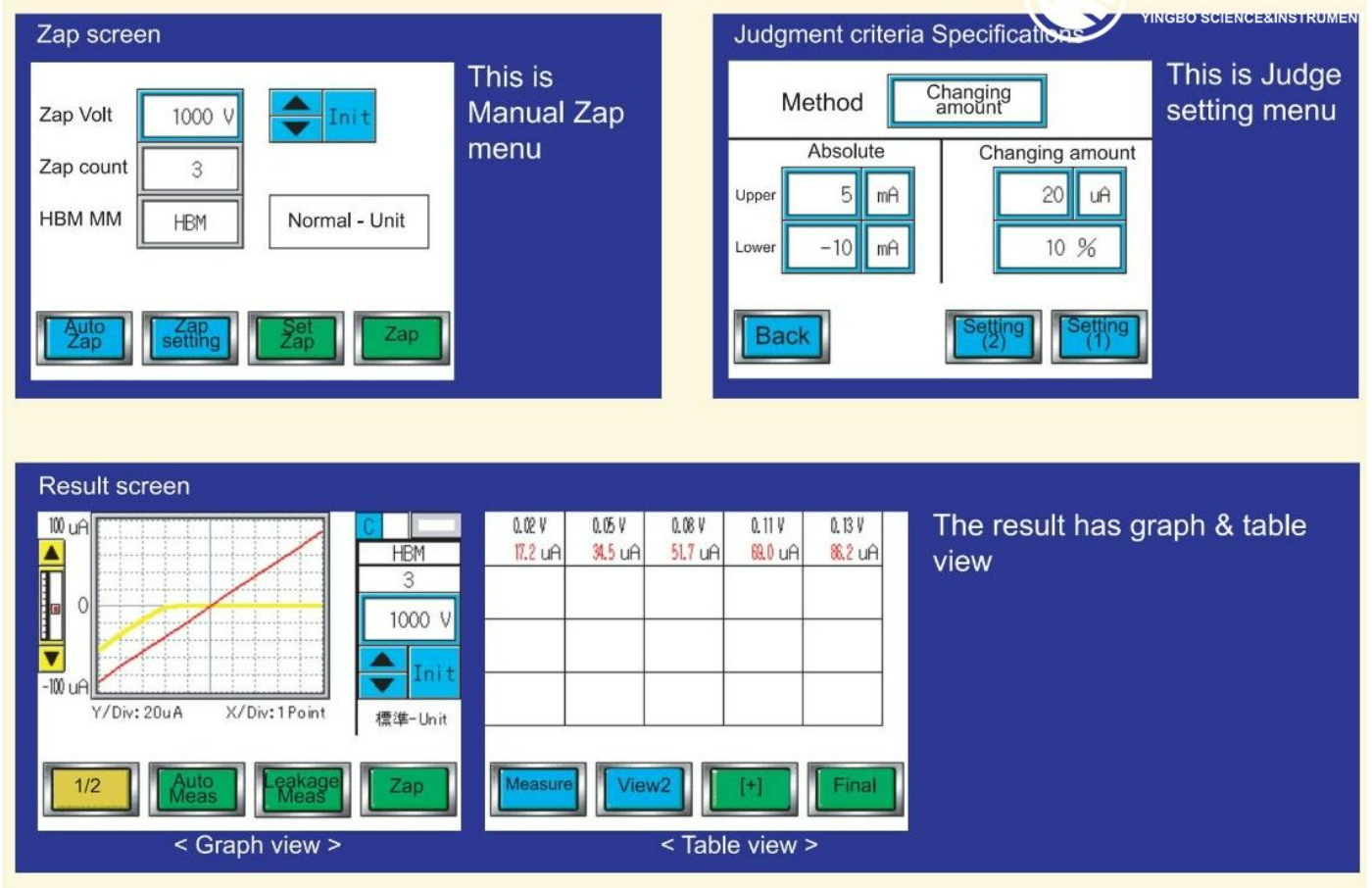

Panel View

Hanwa HCE-5000

Hanwa HCE-5000

Hanwa HCE-5000
